Online Catalog Product Overview
Click any category below to go to that page





All antennas feature stainless steel fasteners and hardware. U bolts are top quality Zinc Plated.

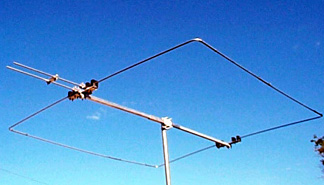

HF Square Loops Versatile Antennas-very quiet
due to horizontal polarization

Loops are newly designed with 1/2" square solid aluminum elements on 9 foot loop and aluminum tubing on the 18 foot loop. Strain reliefs will be provided for ladder line connections. We will post new pictures when we have time. The product shown in the picture is of the older design.

20-6 Meter Square Loop-9 feet per side
In order to concentrate on the products below, we are not taking orders for the square loops any longer.


HF Verticals
The vertical below is being replaced by two new monobanders for 40 and 30 meters and is redesigned with a wider tilt arm (from 3 inches to 4), 2 inch dia. base tube and wider clamps. They will be super sturdy self standing antennas. Pictures will be up soon. The radiating element will start at 2 inch and taper to 1 3/8". Accessories and options will be available too. Sept. 28, 2014

Heavy Duty HF Verticals

35 foot multiband vertical

50 foot vertical




VHF, UHF Yagis

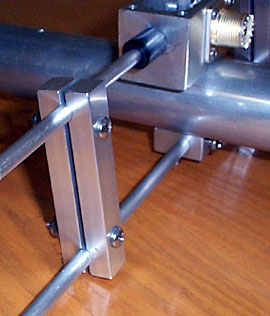

Important Upgrade (Oct. 5, 2014) The shorting bars shown above
have now been replaced with the ones below.
This is a two piece compression type with 8-32 stainless steel machine screws and nylon insert locknuts.
The hole radius is the same as the rods which ensures continuous surface contact and the chances of the bars loosening is almost impossible. The
bars are held in a fixture and drilled with a center cutting end mill chucked in an R8 collet. The end mill makes a more precision and smoother
bore than a standard drill bit held by a drill chuck.

I do not have time to take new antenna pictures at this time so if you order an antenna it will be shipped with these new shorting bars.

6 Meter Antennas

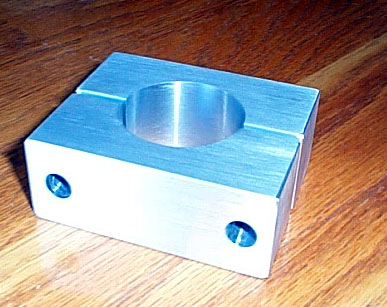

Uses solid aluminum machined saddle clamps to fix elements to the boom. You will not find a better designed and constructed
6 meter antenna anywhere.
This clamp (which grips the boom) has a plate mounted to it's topside and two additional smaller saddle clamps at each end of the plate fix the element tubing.

3 Element
4 Element
5 Element-18 foot boom

3 Element-2 Meter 5 elements
4 Element-2 Meter 8 elements
5 Element-2 Meter 11 elements

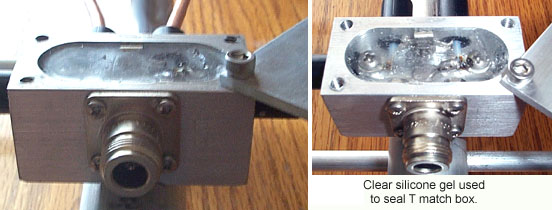

Our silicone gel filled T match block. Standard on all 2 meter antennas
and antennas for lower frequencies.

A ring terminal is soldered to the center conductor of the balun cable and
fixed to the T match rod with a 6-32 stainless machine screw and nylon insert lock
nut. The connection is extremely secure and pretty much loss free. The lock nut
assures a connection that will not loosen over time. After all connections are made,
the silicone gel is poured in and cured in a 150 degree oven.



2 Meter Antennas

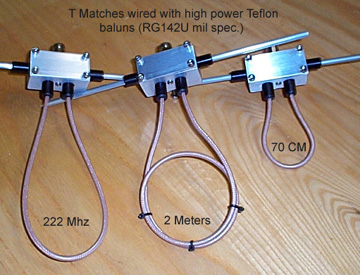

All antennas available with high power Teflon Baluns for full legal power handling.
Uses RG-142U Mil Spec. cable

222 Mhz Antennas

12 Element

70CM Antennas


Satellite Antennas and polarization switches
All Satellite Products are discontinued


VHF/UHF General Purpose Dual Banders

Dual Band 2 meter 7x7 Cross Polarity-10 element 430-450 mhz
This antenna has the same construction as the dual band below
ie, round boom and larger element mounting blocks

Dual Band 2 Meter 7 El. - 10 El 70CM

VHF Vertical Dipole Arrays and single vertical dipoles

All antennas come with cross boom and plates for easy mounting
to a mast or tower, have built in balun and arrays are supplied with phasing
harnesses.


2 Meter Heavy Duty Vertical Dipole

2 Meter 2 Bay Phased Array

2 Meter 4 Bay Phased Array-equipped with LMR 400-75 phasing cables and Amphenol Connex T adapters.
Price $799.00 plus shipping


6 Meter Heavy Duty Vertical Dipole-coming soon

6 Meter 2 Bay Phased Array
